Plane Finder Radar

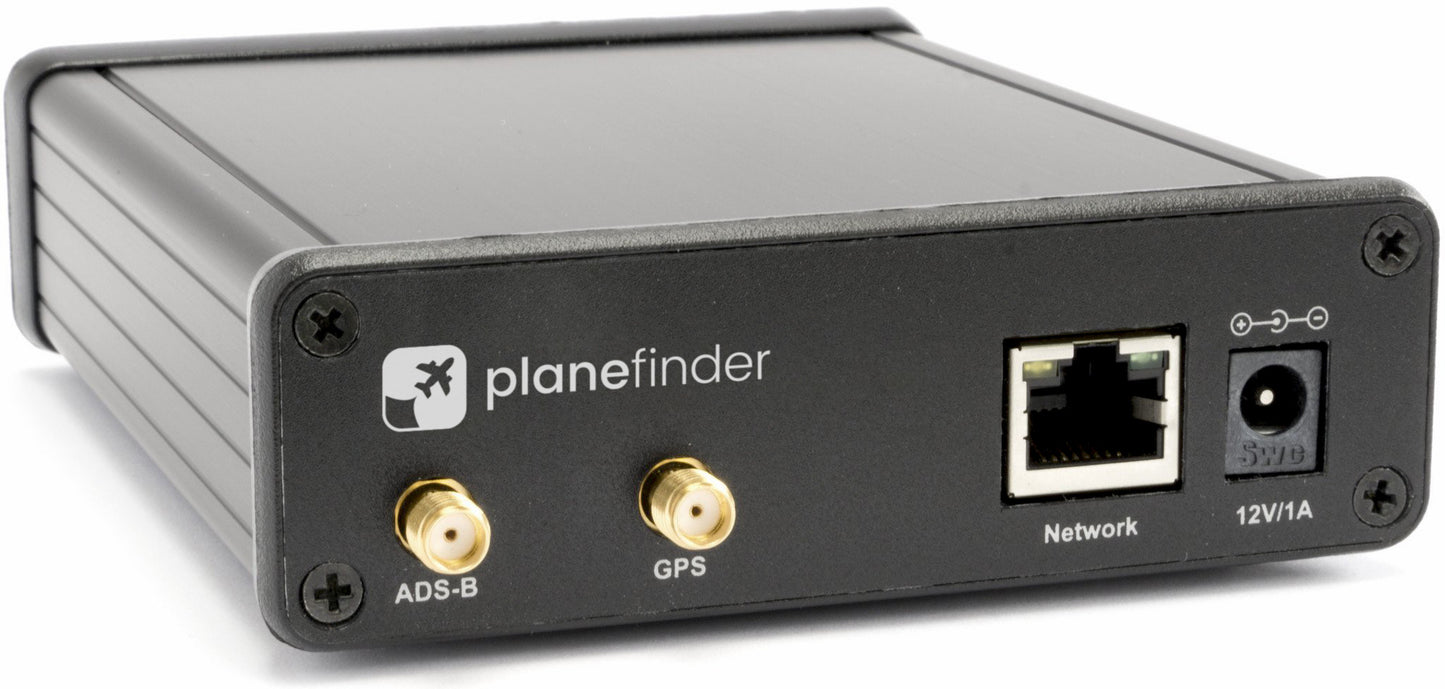

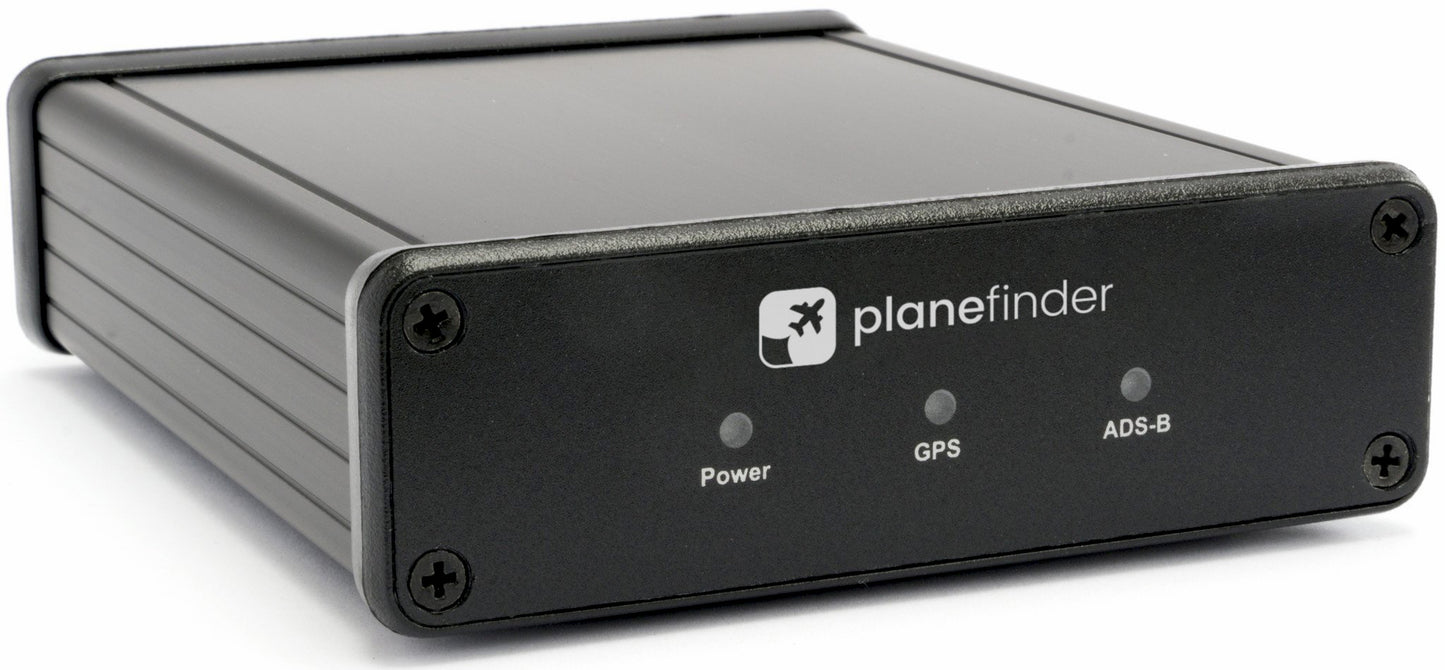

Plane Finder Radar - 1090MHz ADS-B Receiver

Plane Finder Radar - 1090MHz ADS-B Receiver

Regular price £599.00 GBP
Regular price Sale price £599.00 GBP
Sale Sold out
Taxes included.
Include 7dB Antenna & Cable?

High quality standalone ADS-B Receiver with MLAT, designed and manufactured in the UK. Ready to go kit includes low loss cable and 7dB external antenna.

Key Features

  • High specification GPS for accurate timing & multilateration (GPS patch antenna included)
  • Ethernet connection
  • Low power consumption
  • CE, FCC, RoHS & WEEE approvals

Full Featured Web Client

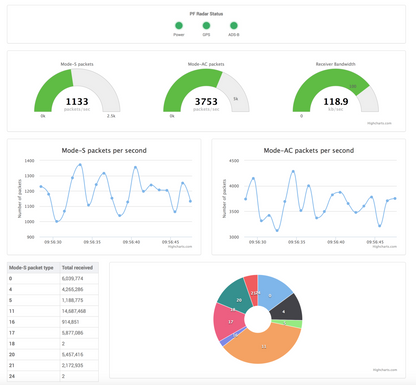

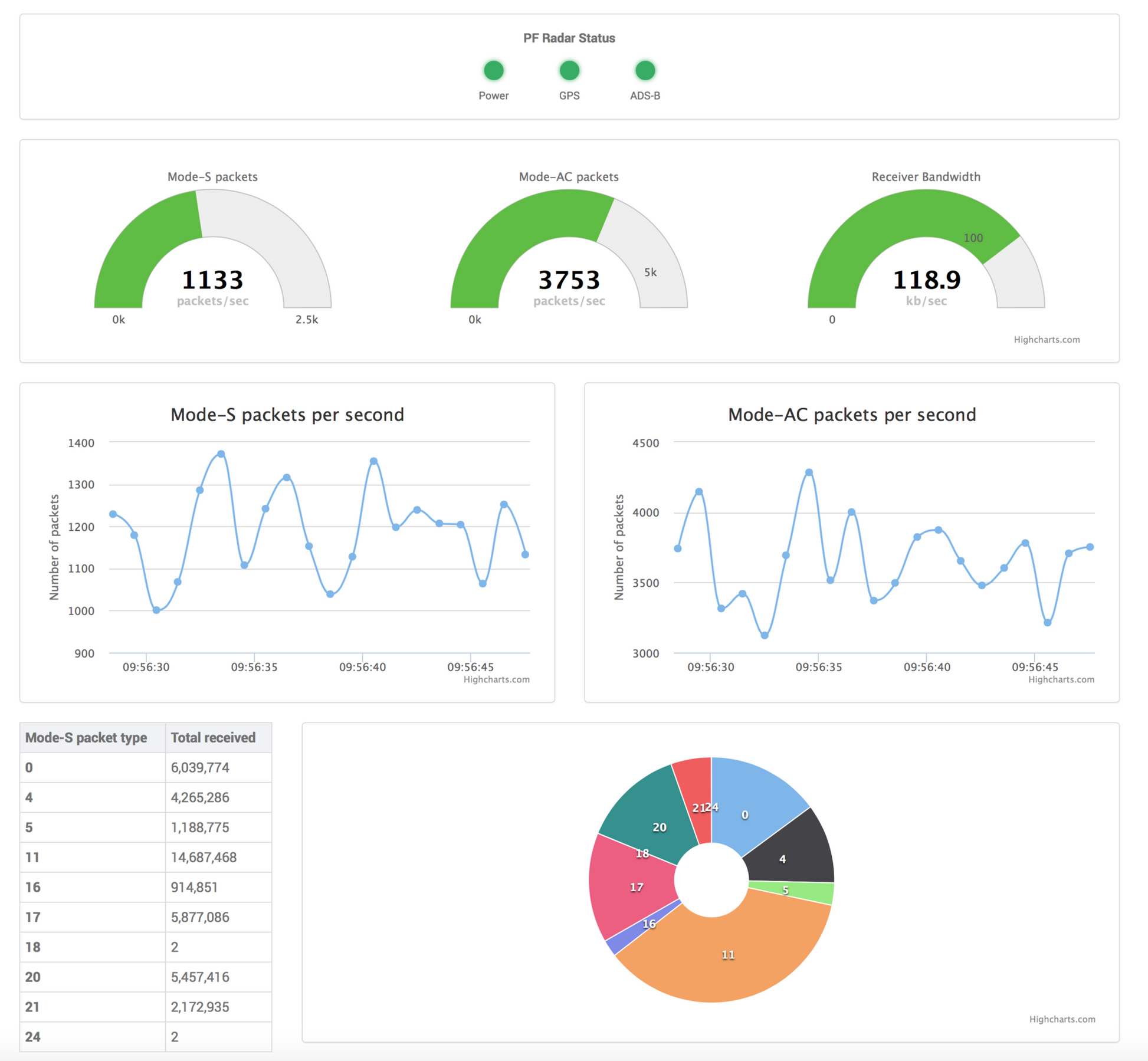

  • Graphs, stats, map and list views

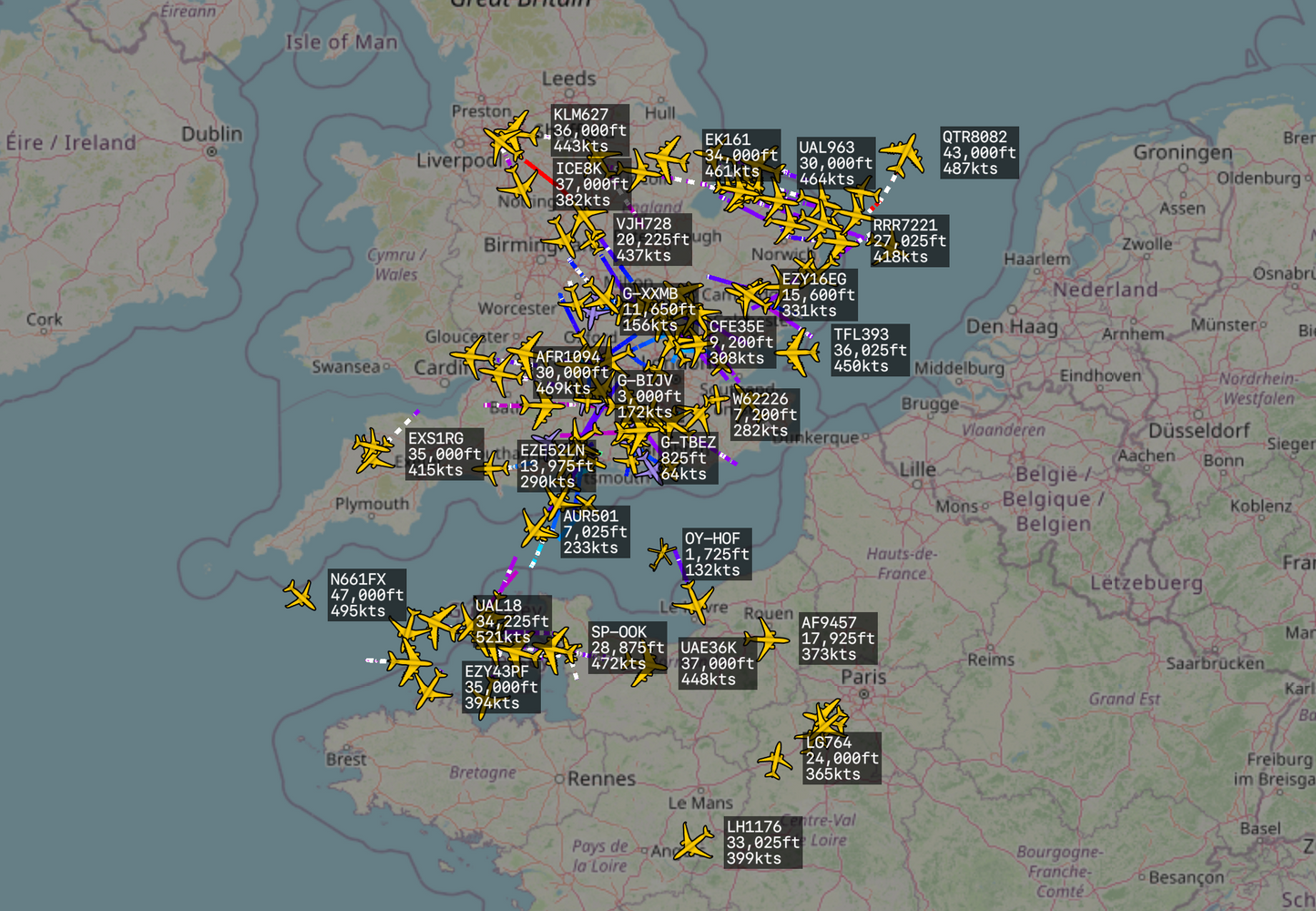

  • View local MLAT plots
  • Share to Plane Finder
  • Support for PlanePlotter, VRS & 3rd party applications

Plane Finder Sharing

  • Simple installation
  • High uptime via self healing technology & auto-updating client
  • Supports ADS-B, Mode-S & Mode-A/C

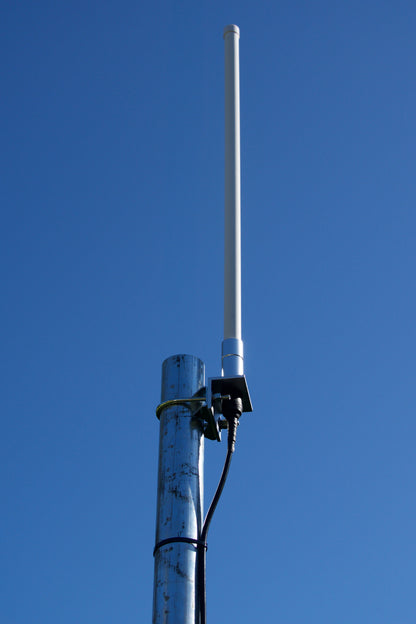

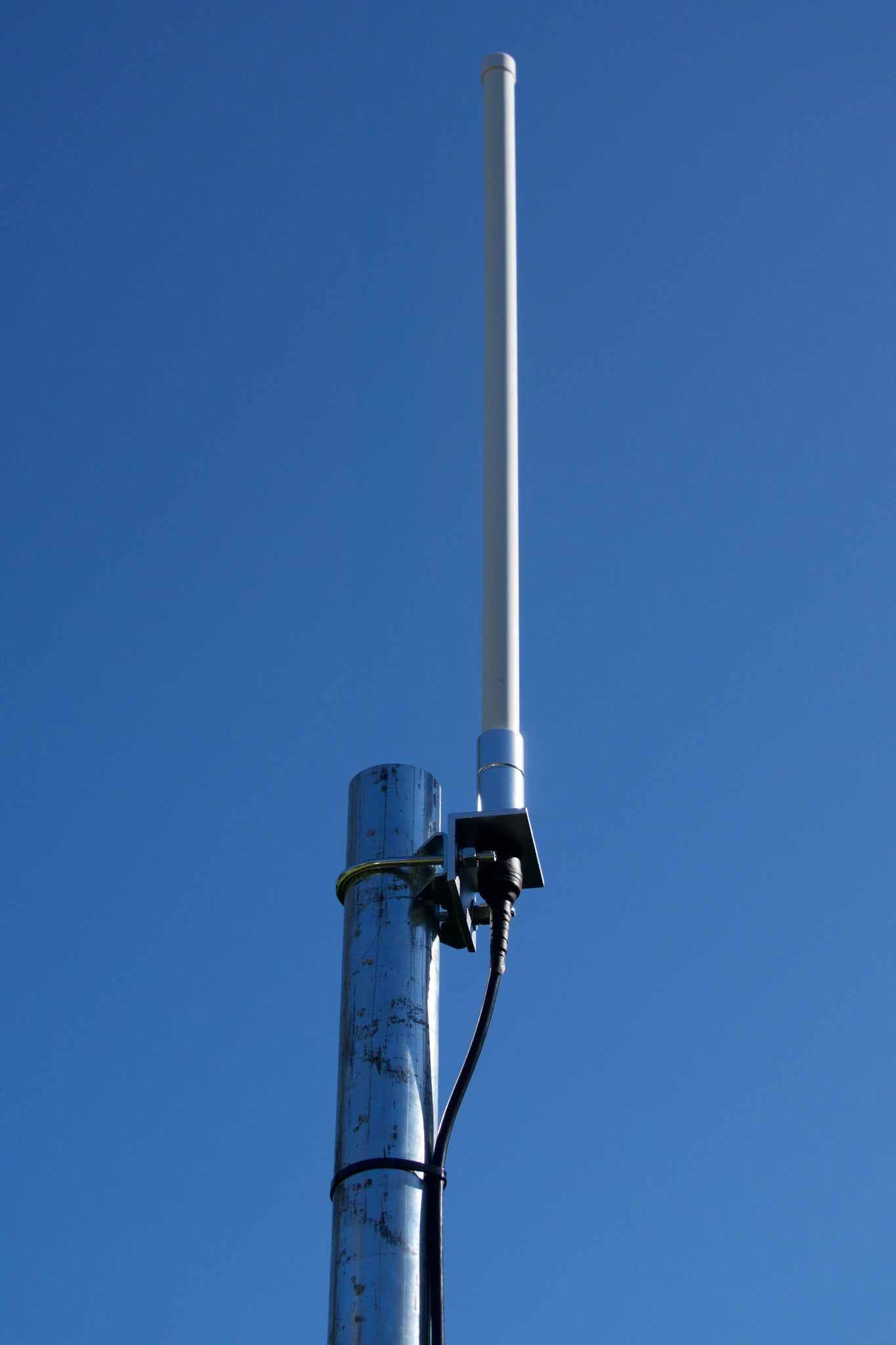

High performance ADS-B 1090MHz antenna

  • 62cm, 7dB gain outdoor antenna with N Female Connector
  • Supplied with L Bracket for pole mounting - supports pole diameter 30-50mm
  • Includes length of self amalgamating tape and 4 x UV/weather resistant cable ties

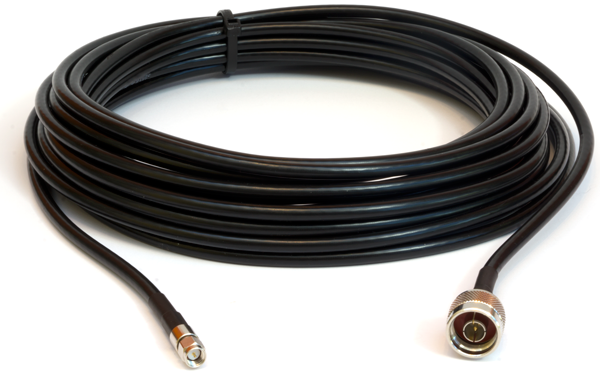

Pre-terminated low loss cable

  • Lengths 5m, 10m, 15m or 20m
  • Connector 1: N Male (for antenna)
  • Connector 2: SMA Male (for Plane Finder Radar)
  • Attenuation: 0.271dB/m
  • Impedance: 50ohms
  • Diameter: 6.1mm (not including connectors)
  • Weight: 50gms/m
  • Temperature Range: -40 to +85 degrees C
  • Minimum bend radius: 15.25mm

Please contact us via sales@planefinder.net for further info or to discuss your project requirements

Note: VAT is added at checkout for UK customers. Outside of the UK additional duties & taxes may be incurred - see here
